Active LED Wall Installation & Commissioning

AVIXA-certified turnkey engineering from structural civil CAD load calculations to 3,840 Hz broadcast camera calibration. Direct Tier-1 wholesale supply from Sony, Newline, Samsung The Wall, LG MAGNIT, and Absen with guaranteed 4-hour pan-India SLA support.

P0.9 – P1.8 MicroLED & COB

3,840 Hz Broadcast Camera Sync

GeM & OEM MAF Authorized

4-Hour On-Site SLA Response

WhatsApp LED Quote Request Project BOQ & Pricing Launch LED Calculator

28+ Years Estd. 1997 in Delhi NCR

140+ Walls Deployed Nationwide

4.9 / 5.0 Enterprise Client Rating

Active LED Engineering Console

NOVASTAR COEX 4K

Curved Active LED Broadcast Studio Wall calibrated by GPSPL

LIVE OPTICAL TELEMETRY

3,840 × 1,080 px UHD

Pixel Pitch

P1.25 mm

Refresh Rate

3,840 Hz

Peak Luminance

1,000 Nits

Authorized OEM Technology Partners

Direct Tier-1 wholesale supply, authentic warranty documentation & certified spares

GeM Portal OEM MAF Authorized

Crystal LED Series

All-In-One LED

The Wall & IER

LG MAGNIT & Bloc

Certified Star Partner

TruePix & Infinipix

KVM & Video Matrix

3-Phase Power Backup

Optical Broadcast Engineering

Why 3,840 Hz Refresh Matters: Zero Moiré Under Studio Cameras

Standard 1,920 Hz LED displays create black horizontal scan lines and severe moiré interference patterns when recorded by broadcast studio cameras or executive smartphone recording. GPSPL optical calibration ensures full 3,840 Hz – 7,680 Hz genlocked capture.

Interactive Camera Scan Simulator

Drag the slider below to compare standard 1,920 Hz LED against GPSPL 3,840 Hz broadcast-grade calibration.

Drag handle left / right

1920Hz LED wall showing camera scan lines

3,840 Hz • Broadcast Grade

1,920 Hz • Standard LED (Moiré)

Genlock Camera Sync

Hardware-level genlock synchronization matches the LED wall scan frequency exactly to broadcast video camera shutter angles (1/50s & 1/60s).

16-Bit Low-Gray Calibration

Eliminates posterization and color banding in dim broadcast environments, maintaining true 16-bit color depth even at 20% room brightness.

Zero Electromagnetic Ripple

Dedicated EMC Class-B filtered switching power supplies prevent electrical hum and audio frequency interference across studio microphone lines.

Instant Engineering Estimator

Active LED Resolution, Power & BOQ Calculator

Input your wall dimensions and target pixel pitch to instantly calculate exact pixel resolutions, cabinet counts, power supply demands, and optimal viewing distances.

Select Deployment Preset

Screen Width 16 ft (4.9m)

Screen Height 9 ft (2.7m)

Pixel Pitch (Resolution Density)

Engineering Specification Readout Ready for BOQ

Native Resolution

3,901 × 2,195 px

Total Display Area

144 sq ft (13.4 m²)

Die-Cast Cabinets (600×337.5)

72 Cabinets (9W × 8H)

3-Phase Dedicated Power

~10.9 kVA Peak Load

Min. Recommended Viewing Distance 1.5 meters

Recommended 4K/8K Video Controller NovaStar VX1000 Engine

Need detailed CAD drawings, electrical line diagrams & tender BOQ specifications?

Get Official BOQ & Drawing for This Configuration

Proven Engineering Track Record

Verified Enterprise Installations • Real Projects

Explore real active LED video wall installations executed by GPSPL AVIXA-certified engineers across Delhi NCR, Mumbai, Bangalore, and Pan-India enterprise locations.

4x3 Die-Cast Cabinet Corporate Boardroom Active LED Installation On-Site

Corporate Boardroom Installation

DLF CyberCity • Gurgaon

4×3 Seamless Die-Cast Active LED Boardroom Wall

On-site precision installation of a 4×3 high-resolution die-cast cabinet active LED wall with flush acoustic wood wall mounting, dual-loop signal routing, and clean concealed power management.

4×3 Die-Cast Matrix P1.25 Micro-Pitch Front Service Vacuum On-Site Commissioning

360-degree curved suspended active LED cylinder screen inside luxury shopping mall atrium

Luxury Retail Mall Atrium

Delhi NCR Shopping Atrium

360° Cylindrical Suspended Active LED Mall Screen

Spectacular multi-tier suspended 360-degree cylindrical curved active LED display engineered for high ambient multi-floor viewing, dynamic advertising playback, and 24/7 continuous duty.

360° Curved Cylinder P2.5 High-Brightness Suspended Rigging 24/7 Commercial Duty

National Media House curved active LED newsroom in Noida Film City

Broadcast TV Newsroom

Noida Film City, UP

Curved Active LED Broadcast Studio Video Wall

Turnkey curved structural fabrication with P1.56 broadcast-grade COB panels, genlocked NovaStar video processing, zero camera flicker under 4K studio cameras, and 24/7 continuous on-air uptime.

P1.56 COB 3,840 Hz Genlock Curved Seamless 24/7 Redundant PSU

Enterprise Auditorium

Aerocity • New Delhi

Grand Auditorium High-Resolution Active LED Backdrop

Massive 32ft × 14ft high-contrast stage active LED display with integrated professional line array acoustic audio, wireless presentation switching, and redundant fiber signal distribution.

P1.86 High-Contrast 32 × 14 ft Stage Harman Audio Sync Fiber Loop

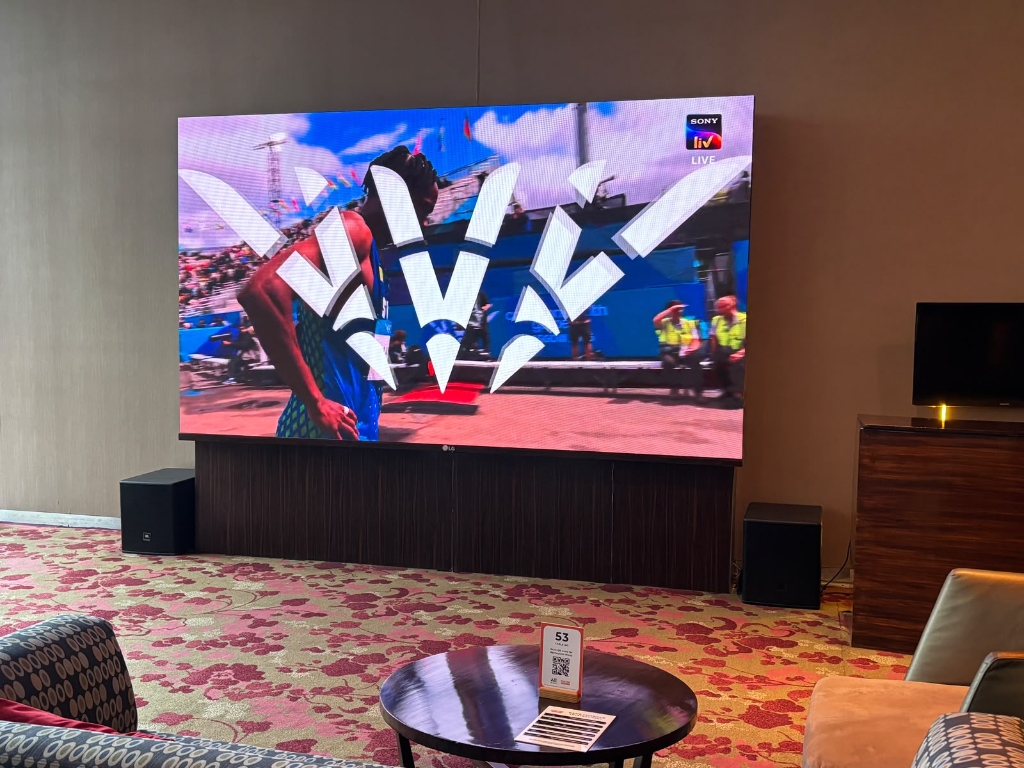

LG Active LED display with JBL audio in luxury executive lounge

Executive Hospitality Suite

Central Delhi • Luxury Hotel

LG Active LED Display & JBL Acoustic Audio Setup

High-definition LG commercial Active LED all-in-one screen paired with Harman JBL low-frequency subwoofers for luxury private viewing, high-impact branding, and crystal-clear presentation audio.

LG Commercial LED JBL Audio Integration High-Dynamic Range Crestron Preset

5-Star Luxury Ballroom Active LED Screen Stage Installation

5-Star Hospitality

Gurgaon • CyberCity

Luxury Ballroom Dynamic Event Active LED Video Wall

High-brightness P2.5 event display engineered for high ambient banquet lighting, fast motorized rigging safety mechanisms, and seamless Crestron environmental preset control.

P2.5 High-Brightness 1,500 Nits Crestron Automation 4-Hour SLA Support

Flawless Execution

The GPSPL 5-Stage Active LED Lifecycle

From initial structural civil load surveying to post-commissioning 4-hour SLA warranty support, every project follows strict AVIXA architectural standards.

Civil & CAD Survey

Wall load-bearing verification, surface flatness measurement with laser levels, thermal HVAC dissipation routing, and dedicated 3-phase electrical feed planning.

CNC Frame Mounting

In-house precision aluminum structure fabrication, seamless die-cast cabinet mounting with less than 0.1mm micro-gap mechanical tolerances.

Redundant Cabling

Dual-loop CAT6/Fiber ring signal topologies and dual hot-swappable power supply units (PSUs) ensuring zero blank screens if an individual feed fails.

Optical 4K Calibration

Pixel-to-pixel coordinate mapping, 16-bit low-grayscale gamma tuning, 3,840Hz genlock synchronization, and optical spectrophotometer color matching.

4-Hour SLA Support

Full OEM serial registration, buffer spare module stocking at our Delhi NCR warehouse, operator training, and guaranteed 4-hour on-site SLA AMC coverage.

Engineering Specification

Active LED Technology Matrix: COB vs SMD vs MicroLED

Compare packaging architectures to select the ideal balance between viewing distance, impact resistance, and project budget.

Specification Feature	Micro-Pitch COB (Chip-on-Board)	Standard SMD (Surface Mount)	MicroLED (e.g. Sony Crystal / The Wall)
Pixel Pitch Range	P0.9 mm to P1.56 mm	P1.86 mm to P4.0 mm	P0.63 mm to P0.9 mm
Surface Protection	IP54 Resin Encapsulated (Dust/Moisture/Collision Proof)	IP30 Open Diode (Fragile to touch)	Black Seal Technology (Ultra-Durable)
Viewing Angle	170° / 170° (Ultra-Wide, No Color Shift)	140° / 140° (Standard)	178° / 178° (Perfect Optical Uniformity)
Contrast Ratio	10,000 : 1 High Contrast	4,000 : 1 to 6,000 : 1	1,000,000 : 1 Pure Deep Black
Maintenance Mode	Front Vacuum Tool Magnetic Extraction	Front Magnetic Tool / Rear Access	Front Magnetic Robotic Extraction
Ideal Enterprise Application	Boardrooms, TV News Studios & Command Centers	Auditoriums, Stages & Public Malls	Executive War Rooms & Luxury Showrooms

Knowledge & Compliance

Frequently Asked Questions

Transparent technical, commercial, and warranty insights to assist your procurement team.

What is the typical cost per sq ft for commercial Active LED video walls in India?

Commercial Active LED wall pricing in India generally ranges from ₹3,500 to ₹18,000+ per sq ft depending on pixel pitch (P0.9 MicroLED to P3.9 Outdoor), packaging technology (COB vs SMD), refresh rate (3,840Hz broadcast vs 1,920Hz), and processor grade (NovaStar COEX/VX series). As a direct Tier-1 authorized distributor for Sony, Newline, Samsung, LG, and Absen, GPSPL provides direct wholesale OEM pricing with zero intermediary markups.

What is the key difference between Chip-on-Board (COB) and Surface Mount Device (SMD)?

COB (Chip-on-Board) mounts LED flip-chips directly onto the PCB substrate and covers them with an optically transparent epoxy resin. This delivers IP54 front protection against dust, water droplets, and physical impact, wider 170° viewing angles, and zero dead lamp beads caused by accidental touching. SMD (Surface Mount Device) solders individual packaged diodes onto the board, making it highly cost-effective for larger auditoriums and stage setups where viewers sit more than 3 meters away.

Can GPSPL provide Manufacturer Authorization Format (MAF) letters for GeM and government tenders?

Yes. GPSPL is a registered GeM (Government e-Marketplace) OEM partner and authorized Tier-1 enterprise distributor. We provide authentic Manufacturer Authorization Formats (MAF), BIS safety certifications, CPWD compliance declarations, and customized BOQ technical schedules for central and state government tenders across India.

What electrical and structural preparations are required prior to installation?

Active LED walls require a flat, plumb masonry or reinforced drywall structure capable of supporting approximately 35 kg to 45 kg per sq meter. Electrically, a dedicated 3-phase 415V AC power supply with isolated copper earthing (neutral-to-earth voltage < 2V) and online UPS backup is required. GPSPL provides complete pre-installation CAD drawings, civil anchor locations, and electrical line single-line diagrams (SLDs) during Stage 01 of our project engagement.

What is the typical delivery and commissioning timeline?

Standard indoor displays (e.g. 110-inch to 165-inch all-in-one panels or standard P1.25/P1.5 walls) are typically delivered and commissioned within 7 to 14 business days from our Delhi NCR warehouse stock. Custom architectural curved newsrooms, multi-story facades, or high-security command centers generally require 3 to 4 weeks for precision CNC structure fabrication, civil integration, and multi-step optical spectrophotometer calibration.

Ready to Architect Your Active LED Wall?

Speak directly with an AVIXA-certified solutions engineer. We provide site CAD surveys, custom optical sightline modeling, and wholesale OEM BOQ quotes within 24 hours.

Schedule Engineering Consultation +91 89208 30377

What must be agreed before LED wall installation?

An equipment quotation and an installation scope answer different questions. Before installation, confirm who supplies the supporting structure, checks the wall or floor loading, provides power and earthing, arranges access equipment and prepares the signal route. These responsibilities should be assigned before work starts.

Ask for a handover checklist covering alignment, visible seams, test content, processor configuration, brightness settings, operator training and service access. Confirm who handles a failed module and whether spares, access work and return visits are included. A site inspection is needed before confirming structural or electrical suitability.
